Quality Standards |
|
| 1) |
Highest quality standard as all machined parts are made with CNC or equivalent machinery. |
|
| 2) |
Products are tested as per standards available or as per customer’s requirement. |
|
| 3) |
Inspection and testing before dispatch - test certificate provided. |
| |
|
|
| |
| |
|
| |
 |
|
 |
 |
| |
|
| |

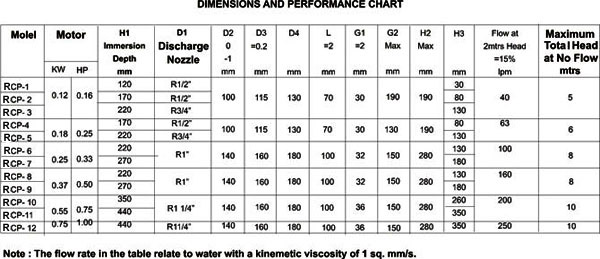

RANGE

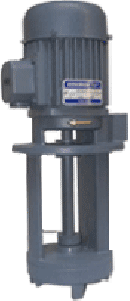

Rotomatik Coolant pumps are
available from 0.16 to 1.00 HP and Flow rate from
40 to 250 LPM in stem length 120, 170, 220, 350,
& 440 mm.
STANDARD
FOLLOWED
All Coolant Pumps are manufactured
as per IS : 2161.
RATINGS
Coolant pumps are rated for
continuous duty (S1) at an ambient temperature of
40 DEG C.
VOLTAGE &
FREQUENCY
Coolant pumps are designed for 415
Volts _ 6%, 3 phase, 50 Hz _ 3% supply & 220
Volts _ 6%, 1 Phase, 50 Hz _ 3% supply also
available on request. |
|
|
| |
| INSULATION |
| |
| Coolant pumps
are manufactured with class ‘B’ insulation, Class
‘F’ and, ‘H’ areprovided on request. |
| |
WINDING |
| |
| Modified polyester
enameled copper wire which is tested as per IS :
13730 isused for winding of all Coolant pumps.
Additionally high dielectric and mechanical
strength material is used for slot insulation. |
| |
| STATO |
| |
| Electrical stamping
are of CRNGO material with grade M-45, C-6 coating
with lower losses. |
| |
ROTOR &
SHAFT |
| |
Pressure alluminums die caste
rotors and shaft of EN-8D steel material is
provided in all Coolant pumps. |
| |
BEARINGS
SKF or equivalent imported bearings are
used in all Coolant pumps. |
| |
| MOTOR BODY,
COVERS AND STEM |
| |
There are made of C.I.
Gr. FG 200 material for required strength and
reliability. |
| |
| INSPECTION AND
TESTING |
| |
All components are manufactured
and inspected on latest precision machineries and
calibrated instruments to give years of
maintenance free operation. All pumpsare tested as
per relevant Indian standards in latest and well
enquipped testing Industries. |
|
 |
 |
 |
 |
|
| |
|
| |
 |
|
